Swaraj 724 XM ORCHARD
swaraj 724 XM ORCHARD
Swaraj 724XM Orchard is a 18.64-22.37 kW (25-30hp) category tractor. It is fitted with powerful & fuel efficient two-cylinder water-cooled engine. It's narrow rear track width and down draft silencer makes it highly suitable for inter-cultivation and orchard farms operation. It also comes with deluxe driver seat with better suspension which provides greater comfort while driving.
At a Glance
No. Of Cylinder : 2
Power Category : 18.64-22.37 kW (25-30 HP)
Engine : 1824 cm3
Brakes : OIB
PTO r/min : 1000 r/min or 540 r/min
Features

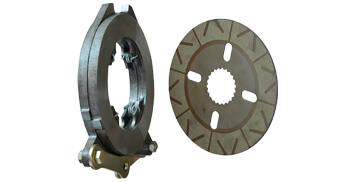

OIB
Better braking efficiency - Less maintenance - Longer life

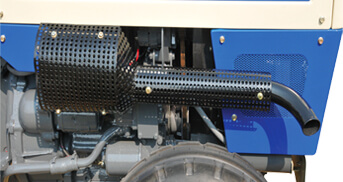

Down Draft Silencer
Easily access in orchard farms - No fouling with branches

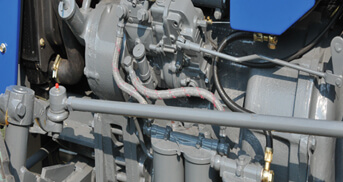

Engine
2-Cylinder fuel efficient water cooled engine
Rear Wheel Track
Rear track width - Suitable for intercultivation crops
Deluxe Driver Seat
Comfortable driver seat with better suspension
Specification
Engine
Model RV-2 XM+ 3A
Power: 18.64-22.37 kW (25-30 HP)
Type 4 Stroke, Direct injection, Diesel engine.
No. of Cylinders 2
Bore and Stroke 100 X 116 mm
Displacement 1824 cm3
Rated Engine Speed 1800 r/min.
Air Cleaner Dry type , Dual element with dust unloader
Cooling System Water Cooled with No loss tank.
Clutch
Clutch Standard Single dry disc friction plate (Diaphragm type)
Clutch Optional NA
Gear Speeds
No. of Gears 6 Forward, 2 Reverse speeds
Forward 2.3 to 24.2
Reverse 2.29 & 9.00
PTO
Speed Standard 1000 r/min
Speen Optional NA
Brakes
Brake Type Standard Oil Immersed Brakes
Brake Type Optional NA
Steering
Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
Optional NA
Hydraulics
Live Hydraulics Live Hydraulics A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
Lifting Capacity 1000 kg at lower link ends.
Linkage 3 point linkage suitable for Category-I&II type implement pins.
Tyre Type
Front Tyre Standard 5.00 x 15
Rear Tyre Standard 11.2 x 24
Electricals & Electronics
Electricals 12 V, 75 Ah. Battery Starter motor & Alternator
Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
O.A.Length 2850 mm
O.A.Width 1320 mm
O.A.Height 1340 mm at steering wheel
Wheel Base 1545 mm
Min. ground Clearance 235 mm
Weight of Tractor 1430 kg
Wheel track Front 1060 mm
Wheel track Rear 1034 mm (with 11.2*24 tyre type)
