Swaraj 742 XT
swaraj 742 XT
- The new Swaraj 742 XT is, a fusion of contemporary style and advanced features in a tractor.
- With its impressive power, this high-performance vehicle is well-equipped to tackle a wide range of agricultural tasks.
- Its design places a strong emphasis on providing the farmer with optimal comfort.
- Just as we proclaim, Swaraj Se Behtaar Sirf Swaraj.
Swaraj 742 XT Specifications at a Glance
- No. Of Cylinder : 3
- Power Category : 29.82-33.09 KW(41-45 HP)
- Engine : 2000 Rated engine speed(r/min)
- Brakes : OIB
- PTO r/min : 540/540, with 4 multispeed forward and 1 reverse speed
Features

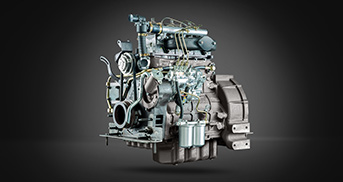

Powerful Engine
Powerful engine that gives better torque and lets your carry the heaviest of implements.

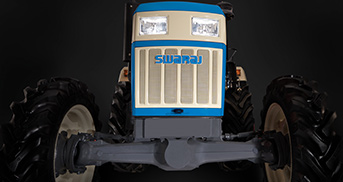

Strong Front Axle
Strong front axle lets you drive through sturdy fields.

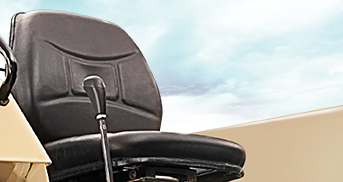

Comfortable Drive
Experience a comfortable drive while farming.
Specification
Engine
Engine HP - 29.82-33.09 KW(41-45 HP)
Rated Engine Speed (r/min) - 2000
Displacement (cm3) – 3307
Bore (mm) - 110
Stroke (mm) - 116
Service Interval(h) - 400
Air Cleaner - 3 Stage wet Air Cleaner
Transmission
Gear box type - Sliding Mesh/PCM
Clutch type - Standard Single Clutch / Optional Dual Clutch/Double clutch (Independent PTO)
No. of Gears & Shifting pattern - 8 Forward, 2 Reverse speeds with Centre Shift levers / Optional - 8 Forward, 2 Reverse speeds with Side Shift Shift levers
Front axle type - Adjustable/Fixed
Front axle drive - 2WD
Steering - Mechanical Steering / Optional Power Steering
PTO and Hydraulics
P.T.O - 540 r/min / Optional - 540/540, with 4 multispeed forward and 1 reverse speed
Hydraulics(kg) - 1700
Easy Hitch - Standard
DCV - Optional
Brake
Type - Oil immersed brakes
Tyre Size
Front Tyre 2WD -
Option 1 - 152.40 mm x 406.40 mm (6.00 x 16)
Option 2 - 190.50 mm x 406.40 mm (7.50 X16)
Rear Tyre 2WD -
Option 1 - 345.44 mm x 711.20 mm (13.6 x 28)
Option 2 - 378.46 mm x 711.20 mm (14.9 x 28)
Electrical
Battery (Ah) - 80
Head lamps types - Glass Lens
Fender & Tail Lamps Variants - Regular
Instrument cluster - Gauges
Dimensions and Capacity
Length - 3455 mm
Width - 1915 mm
Height - 2235 mm
Wheel Base - 2085 mm
Min. Ground Clearance - 440 mm
Weight of tractor - 2053 kg
Diesel Tank Capacity - 56 litre
Wheel track front - 1320 mm
Wheel track rear - 1490 mm
