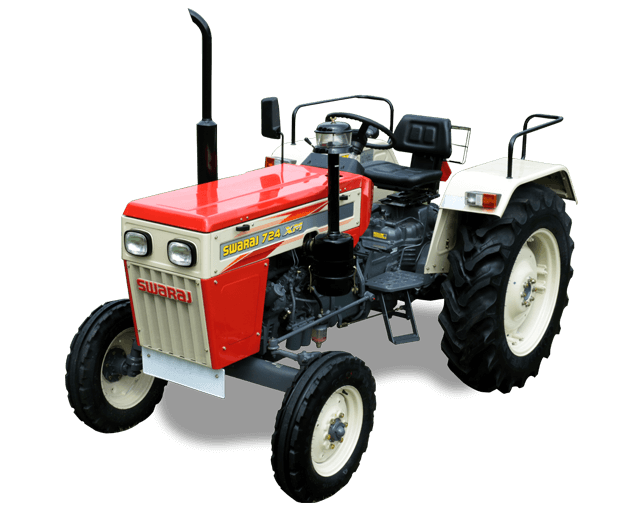

Swaraj 724 XM
swaraj 724 XM
Swaraj 724 XM is a 18.64 kW-22.37 kW (25-30hp) category tractor. It is fitted with powerful & fuel efficient two-cylinder water-cooled engine. It comes equipped with host of features like oil immersed brakes that offer better braking efficiency and quick release coupler that provides ease of connection of tipping trailer. The bigger wheelbase of the tractor makes it highly suitable for haulage and agricultural applications.
Swaraj 724 XM Specifications at a Glance
- No. Of Cylinder : 2
- Power Category : 18.64 kW-22.37 kW (25-30 HP)
- Engine : 1824 cm3
- Brakes : Water sealed disk brakes
- PTO r/min : 1000 r/min or 540 r/min (optional)
Features
OIB
Better braking efficiency - Less maintenance - Longer life
Engine
2-Cylinder fuel efficient water cooled engine
QRC With Tap Off Pipe - 724 XM
Company fitted Quick release coupler - For easy connection of tipping trailer
Stablizer Bar
Control sway of heavy implements like Rotavator
Steering Lock
Provision of front axle lock - Safety from theft
Straight Front Axle
Bigger wheel base - Better stability during haulage application - Less front end lifting
Specification
Engine
Model RV-2 XM + 3A
Power: 18.64-22.37 kW (25-30 HP)
Type 4 Stroke, Direct injection, Diesel engine.
No. of Cylinders 2
Bore and Stroke 110 mm x 116 mm
Displacement 1823 cm3
Rated Engine Speed 1800 r/min.
Air Cleaner 3 - Stage Oil Bath Type
Cooling System Water Cooled with No loss tank.
Clutch
Clutch Standard Single dry disc friction plate
Gear Speeds
No. of Gears 8 Forward, 2 Reverse speeds
Forward 2.19 to 27.83
Reverse 2.73 & 10.77
PTO
PTO Speed: Standard 540 r/min
Brakes
Brake type: Stanrad Dry Disc type Brakes
Brake type: Optional Oil Immersed Brake
Steering
Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
Hydraulics
Live Hydraulics "A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
Lifting Capacity 1000 kg at lower link ends.
Linkage 3 point linkage suitable for Category-I&II type implement pins.
Tyre Type
Front Tyre - 152.40 mm x 406.40 mm (6.00 x 16)
Rear Tyre - 314.9 mm x 711.2 mm (12.4 x 28)
Electricals & Electronics
Electricals 12 Volt, 88 Ah. Battery Starter motor & Alternator
Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
O.A. Length 3285 mm
O.A. Width 1685 mm
O.A. Height 2205 mm
Wheel Base 1930 mm
Min. Ground Clearance 380 mm
Weight of Tractor 1670 kg
Wheel Track Front 1300 mm - 1550 mm
Wheel Track Rear 1350 mm - 1900 mm (with 12.4*28 tyre type)
