Swaraj Target 630 4WD
swaraj Target 630 4WD
For decades, Swaraj has won the hearts of the farmers by giving them indomitable power to conquer the terrain across the nation. Now we leap into a future where power gets super-charged by the best-in-class technology. This convergence will enable the new-age farmers to meet all their targets for farming and life. Presenting Swaraj Target, the culmination of path-breaking power and technology that will revolutionise not just the compact lightweight tractor category in India but also the entire agricultural landscape.
SWARAJ TARGET 630 4WD KEY FEATURES
Now it is possible for the modern farmer to achieve every target of Spraying and Inter-culture.
- Spray Saver Switch Technology
- Sync-Shift Transmission
- Wet IPTO Clutch Technology
- Max Cool
- Powerful DI Engine
- MaxLift
- ADDC Hydraulics
- Narrowest FlexiTrack
Swaraj Target 630 4WD Specifications at a Glance
- No. Of Cylinder : 3
- Power Category : 29
- Engine : 1331 cm3
- Brakes : Oil immersed brakes
- PTO r/min : 540 & 540 E / 540+R
Swaraj Target 630 4WD Features
Spray Saver Switch
Switch technology can save up to 10% of the expensive spray

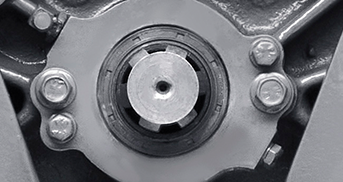

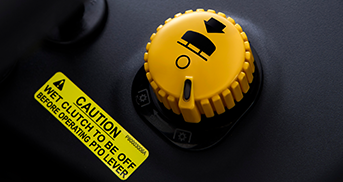

Wet IPTO Clutch
Technology which enables continuous operation of IPTO implements even when the main clutch is pressed

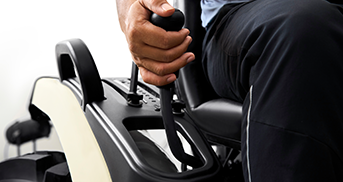

Sync- Shift Transmission
Get the comfort of car- type Gear shifting

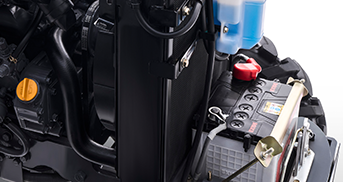

Max cool
20% larger radiator ensures non-stop tractor usage for hours

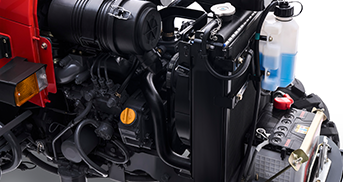

Powerful Di Engine
An engine with 87 Nm torque to effortlessly pull trailed. Sprayers of up to 800 litre even in the muddiest terrain

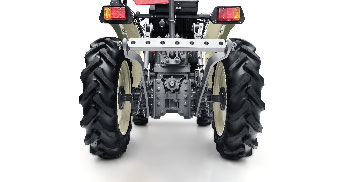

MaxLift
980 kg Lift capacity makes it possible to lift even the heaviest of implements with ease

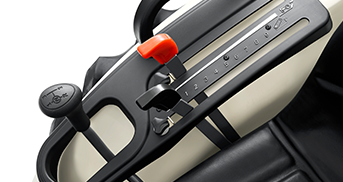

ADDC Hydraulics
Ensures uniform depth control in draft implements such as Duckfoot cultivator MB plough and others

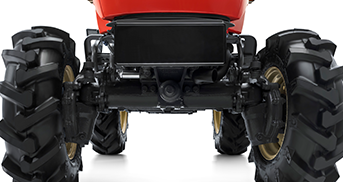

Narrowest FlexiTrack
Category’s narrowest 3 ft overall width. Option to adjust track width as 711.2, 812.8 or 914.4 basis the crop (values are in mm)
Swaraj Target 630 4WD Specifications
Engine
Make & Type - Yanmar / Liquid Cooled, Direct Injection
Engine Power (hp) - 29 @2800 ERPM
No of Cylinders - 3
Total Displacement (cc) - 1331
Air Cleaner - Dry Type, Dual element
Maximum torque (Nm) - 87
Transmission
Clutch
Main Transmission-Single Dry Clutch
PTO - Independent Wet Clutch
No of Speeds - 9 Forward & 3 Reverse
Brakes - Oil Immersed Brakes
Final Reduction - Bull Gear Reduction
Mechanical differential lock - Yes
Hydraulics
Hydraulic Control System : Automatic Depth & Draft control
Three Point hitch Category : Category 1
Max Lift Capacity @ Hitch Point : 980 kgf
Transport lock : Yes
PTO
PTO On-Off Control: Switch Operated
PTO Speeds: 540 & 540E / 540 + R
PTO Power (hp): 24
Front Axle & Steering
Front Axle Type: 4WD - Portal type
4WD Engagement type: Mechanical with lever
Steering Type - Balanced Power Steering
Dimensions
Wheelbase (mm) : 1555
Front Track width (mm)
Standard - 840
Optional - 755 (Narrow rim)
Rear Track width (mm)
Standard - 797
Option 1 - 710
Option 2 - 910
Weight (kg) : 910
Tyre
Front Tyre
Standard - 180/85D12
Optional - 180/85D12 with Narrow rim
Rear Tyre
Standard - 8.30 x 20
Option 1 - 9.50 x 20
Option 2 - 9.50 x 20 High Lug
Others
Fuel Tank Capacity (ltrs.) - 27
Seat type - Sliding adjustable
