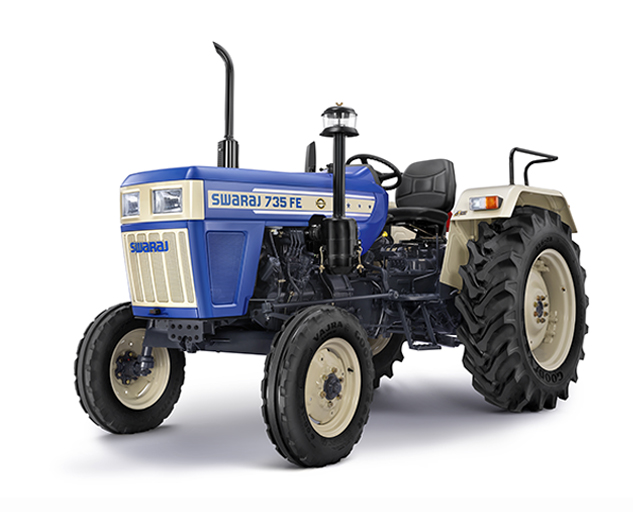

Swaraj 735 FE

swaraj 735 FE

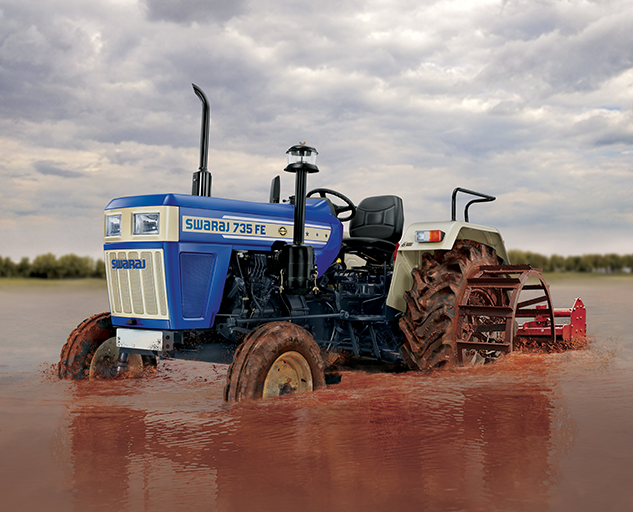

735 FE is the most preferred model in the farming community. A front-runner, this 26.09 – 29.82 kW (35-40hp) category tractor is powered by a powerful & fuel efficient water-cooled 3-cylinder engine. This tractor is highly suitable for agriculture usage like cultivator, rotavator, thresher etc. It comes equipped with host of features like power steering, oil immersed brakes and bigger rear tyres that provide comfortable driving. Long life, low maintenance costs & better ergonomics of this tractor make it amongst the most sought after tractor by the farming community.
At a Glance
No. Of Cylinder : 3
Power Category : 26.09 – 29.82 kW (35-40 HP)
Engine : 2734 cm3
Brakes : Dry Disk brakes / OIB
PTO r/min : 1000 r/min or 540 r/min
Features
Engine
Fuel efficient water cooled 3 cylinders engine
Power Steering
More stability on haulage – Comfortable driving
OIB
Better braking efficiency - Less maintenance - Longer life
Bigger 13.6*28 Rear Tyre
Better gripping - Less slippage during field operation

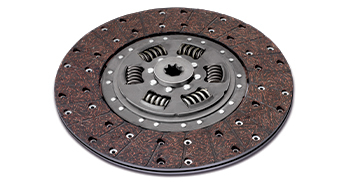

Diaphragm Type Single Clutch (Dia-280mm)
More contact area- better life, hence less maintenance
Stablizer Bar
Control sway of heavy implements like Rotavator
Specification
Engine
Model RV-3 XM+ 3A
Power: 26.09 – 29.82 kW (35-40 HP)
Type 4 Stroke, Direct injection, Diesel engine.
No. of Cylinders 3
Bore and Stroke 100 X 116 mm
Displacement 2734 cm3
Rated Engine Speed 1800 r/min.
Air Cleaner 3- Stage Oil Bath Type
Cooling System Water Cooled with No loss tank.
Clutch
Clutch Standard Single dry disc friction plate – 280 mm dia.
Clutch Optional Dual Clutch
Gear Speeds
No. of Gears 8 Forward, 2 Reverse speeds
Forward 2.30 to 27.80
Reverse 2.73 & 10.74
PTO
PTO Speed: Standard 1000 r/min
PTO Speed: Optional 540 r/min
Brakes
Brake type: Standard Dry Disc type Brakes
Brake type: Optional Oil Immersed Brakes
Steering
Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
Optional Power steering
Hydraulics
Live Hydraulics A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
Lifting Capacity 1000 kg at lower link ends.
Linkage 3 point linkage suitable for Category-I&II type implement pins.
Tyre Type
Front Tyre Standard 6.00 x 16
Rear Tyre Standard 12.4 x28
Front Tyre / Rear Tyre (Optional) 6.00 x 16 / 13.6 X 28
Electricals & Electronics
Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
O.A. Length 3470 mm
O.A. Width 1695 mm
O.A. Height 2255 mm
Wheel Base 1950 mm
Min. Ground Clearance 395 mm
Weight of Tractor 1895 kg
Wheel Track Front 1300 mm
Wheel Track Rear 1350 mm (with 12.4*28 Tyre type)
