Swaraj 744 FE 4WD
swaraj 744 FE 4WD
The new Swaraj 744 FE has modern style and new features, which are capable of overcoming every challenge of farming. It has more power and is ready for every application. It is both comfortable and strong.
Swaraj 744 FE 4WD Specifications at a Glance
- No. Of Cylinder : 3
- Power Category : 33.56 kW – 37.28 kW (46-50 HP)
- Engine : 3307 cm3
- Brakes : OIB
- PTO r/min : 540/540, with 4 multispeed forward and 1 reverse speed (4WD)
Features

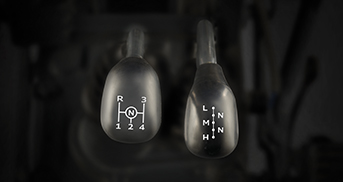

High speed application (4WD)
12 + 3 gears give more speed options so that every work can be done easily.

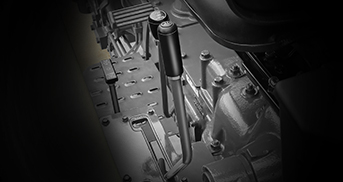

IPTO
IPTO clutch allows operator to easily engage and disengage PTO.
Specification
Engine
Engine HP - 33.56-37.28KW (46-50 HP)
Rated Engine Speed (r/min) - 2000
Displacement (cm3) - 3307
Bore (mm) - 110
Stroke (mm) - 116
Service Interval (h) - 400
Air Cleaner - 3 Stage wet Air Cleaner
Transmission
Gear box type - Sliding Mesh / PCM
Clutch type - Standard Double clutch (Independent PTO)(4WD)
No. of Gears & Shifting pattern - 8 Forward, 2 Reverse speeds with Centre Shift levers
Option 1 - Optional - 8 Forward, 2 Reverse speeds with Side shift levers
Option 2 - Optional - 12 Forward, 3 Reverse speeds with Side shift levers

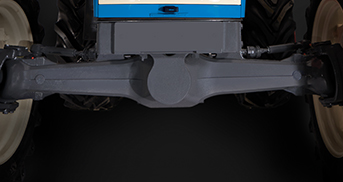

Front axle type - Fixed
Front axle drive - 4WD
Steering - Power Steering
PTO and hydraulics
P.T.O - 540/540, with 4 multi-speed forward and 1 reverse speed (4WD)
Hydraulics(kg) - 2000
Easy Hitch - Standard
DCV - Standard
Brakes
Type - Oil immersed brakes
Tyre Size
Front Tyre 2WD -
Option 1 - 203.82 mm x 407.20 mm (8.00 x 18)
Option 2 - 241.30 mm x 508.00 mm (9.50 x 20)
Rear Tyre 2WD -
Option 1 - 345.44 mm x 711.20 mm (13.6 x 28)
Option 2 - 478.46 mm x 711.20 mm (14.9 x 28)
Electrical
Battery (Ah) - 80
Head lamps types - Glass / Clear Lens
Fender & Tail Lamps Variants - Regular / LED*
Instrument cluster - Digital Instrument Cluster
Dimensions and Capacity
Length - 3545 mm
Width - 1810 mm
Height - 2250 mm
Wheel Base - 2135 mm
Min. Ground Clearance - 435 mm
Weight of tractor - 2060 kg
Diesel Tank Capacity - 62 litre
Wheel track front - 1350 mm
Wheel track rear - 1420 mm
