Swaraj 825 XM
swaraj 825 XM
825 XM is a 18.64-22.37 kW (25-30hp) category tractor. It is fitted with powerful & fuel efficient single cylinder water-cooled engine. This tractor is most suitable for haulage, cultivation, threshing & water pump operations. The bigger wheelbase & straight front axle adds to its front end stability.
At a Glance
No. Of Cylinder : 1
Power Category : 18.64-22.37 kW (25-30hp)
Engine : 1537 cm3
Brakes : Dry Disk brakes
PTO r/min : 540 r/min

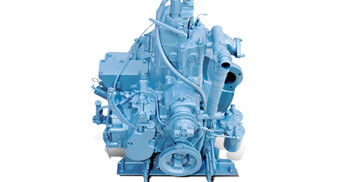

Single Cylinder fuel efficient water cooled engine - More pulling power

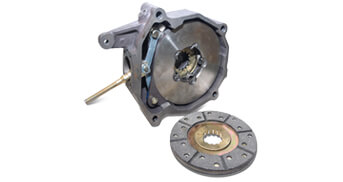

Effective braking on slopes - Easy maintenance

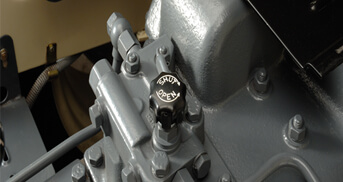

For external applications - without operation of lower links

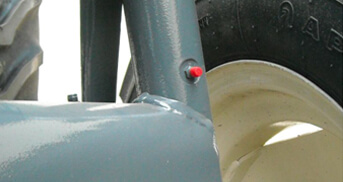

Bigger wheel base - Better stability during haulage application - Less front end lifting

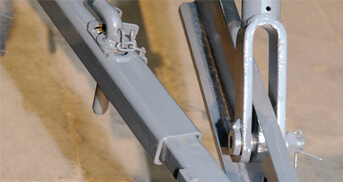

Control sway of heavy implements like Rotavator

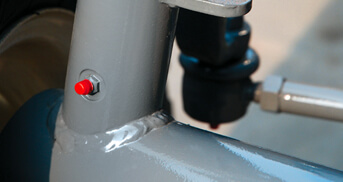

Provision of front axle lock - Safety from theft
Model S-15 XM
Power: 18.64 - 22.37 kW (25-30hp)
Type 4 Stroke, Direct injection, Diesel engine.
No. of Cylinders 1
Bore and Stroke 120 X 136 mm
Displacement 1538 cm3
Rated Engine Speed 1650 r/min.
Air Cleaner 3- Stage Oil Bath Type
Cooling System Water Cooled with No loss tank.
Clutch Single dry disc friction plate
Clutch Optional NA
No. of Gears 8 Forward, 2 Reverse speeds
Forward 3.3 to 26.4
Reverse 2.9 & 9.6
PTO Speed: Standard 1000 r/min
PTO Speed: Optional 540 r/min
Brake Type Standard Dry Disc type Brakes
Brake Type Optional NA
Standard Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator.
Live Hydraulics A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
Lifting Capacity 1000 kg at lower link ends.
Linkage 3 point linkage suitable for Category- I & II type implement pins
Front Tyre Standard 6.00 x 16
Rear Tyre Standard 12.4 x28
Electricals & Electronics
Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
O.A. Length 3260 mm
O.A. Width 1690 mm
O.A. Height 2395 mm
Wheel Base 1930 mm
Min. Ground Clearance 400 mm
Weight of Tractor 1870 kg
Wheel Track Front 1330 mm
Wheel Track Rear 1350 mm (with 12.4*28 tyre type)
