Swaraj Target 625 2WD
swaraj Target 625 2WD
For decades, Swaraj has won the hearts of the farmers by giving them indomitable power to conquer the terrain across the nation. Now we leap into a future where power gets super-charged by the best-in-class technology. This convergence will enable the new-age farmers to meet all their targets for farming and life. Presenting Swaraj Target, the culmination of path-breaking power and technology that will revolutionise not just the compact lightweight tractor category in India but also the entire agricultural landscape.
SWARAJ TARGET 625 2WD KEY FEATURES
Now it is possible for the modern farmer to achieve every target of Spraying and Inter-culture.
- Powerful DI Engine
- Max Cool
- MaxLift
- 2WD Front Axle
- ADDC Hydraulics
- Narrowest FlexiTrack
Swaraj Target 625 2WD Specifications at a Glance
- No. Of Cylinder : 3
- Power Category : 25
- Engine : 1331 cm3
- Brakes : Oil immersed brakes
- PTO r/min : 540/540 E
Swaraj Target 625 2WD Features
Max cool
20% larger radiator ensures non-stop tractor usage for hours
Powerful Di Engine
An engine with 83 Nm torque to effortlessly pull trailed. Sprayers of up to 800 litre even in the muddiest terrain
MaxLift
980 kg Lift capacity makes it possible to lift even the heaviest of implements with ease
ADDC Hydraulics
Ensures uniform depth control in draft implements such as Duckfoot cultivator MB plough and others

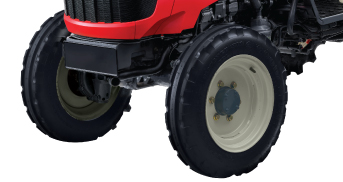

Narrowest FlexiTrack
Category’s narrowest 3 ft overall width. Option to adjust track width as 711.2, 812.8 or 914.4 basis the crop (values are in mm)
Swaraj Target 625 2WD Specifications
Engine
Make & Type - Yanmar / Liquid Cooled, Direct Injection
Engine Power (hp) - 25 @2400 ERPM
No of Cylinders - 3
Total Displacement (cc) - 1331
Air Cleaner - Dry Type, Dual element
Maximum torque (Nm) - 83.1
Transmission
Clutch
Main Transmission - Single Dry Clutch
PTO - Independent Wet Clutch (Optional)
No of Speeds - 9 Forward & 3 Reverse
Brakes - Oil Immersed Brakes
Final Reduction - Bull Gear Reduction
Mechanical differential lock - Yes
Hydraulics
Hydraulic Control System - Automatic Depth & Draft Control
Three Point hitch Category - Category 1
Max Lift Capacities - 980 kgf
Transport lock - Yes
PTO
PTO On-Off Control - Manual Lever / Switch Operated (Optional)
PTO Speeds - 540 & 540E
PTO Power (HP) - 19
Front Axle & Steering
Front Axle Type - 2WD
4WD Engagement type - NA
Steering Type - Balanced Power Steering
Dimensions
Wheelbase (mm) - 1595
Front Track width (mm)
Standard - 840
Optional - 750
Rear Track width (mm)
Standard - 797
Option 1 - 710
Option 2 - 910
Weight (kg) - 870
Tyre
Front Tyre
Standard - 5.25 x 14
Rear Tyre
Standard - 8.30 x 20
Option - 8 x 18
Others
Fuel Tank Capacity (liters) - 27
Seat type - Sliding adjustable
