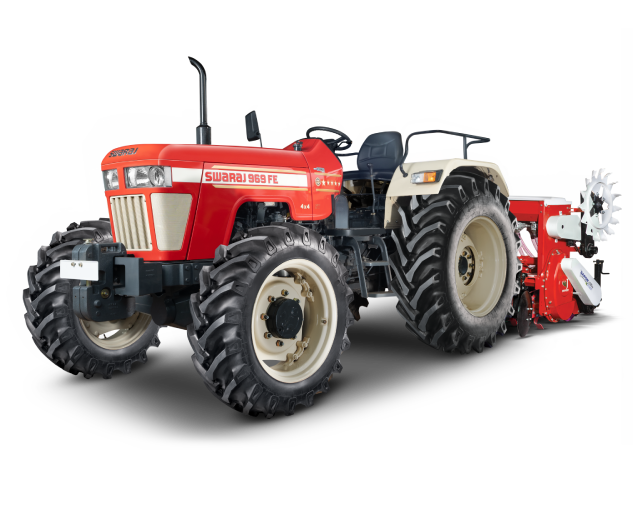

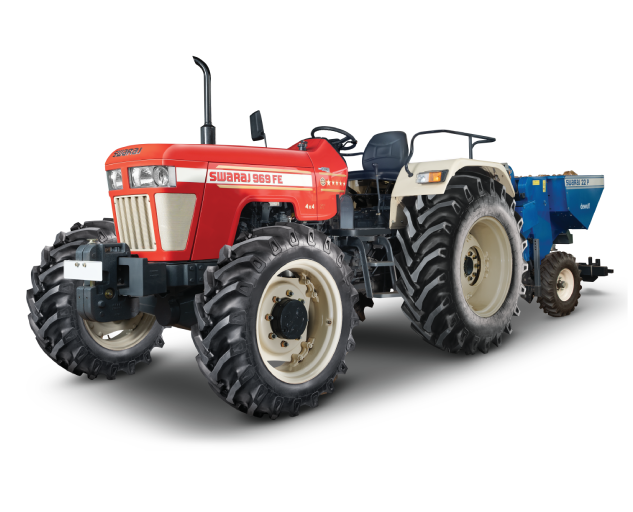

Swaraj 969 FE
swaraj 969 FE
The new Swaraj 969 FE is 49.2 kW - 52.1 kW (66-70 HP) category tractor. It is full of brilliant features to fulfill the needs of every farmer. 969 FE, a tractor that can overcome any obstacle, is built on the pillars of power, trust and reliability. The engineers at Swaraj have a keen understanding of farmers’ needs because most of them are farmers themselves. It is this very expertise of theirs that makes the Swaraj 969 FE stand apart from the rest.
Swaraj 969 FE Specifications at a Glance
- No. Of Cylinder : 3
- Power Category : 49.2 kW - 52.1 kW (66-70 HP)
- Engine : 3478 cm3
- Brakes : Oil-Immersed multi disc brakes
- PTO r/min : 540,540E, Multi-speed 8 Forward & 2 Reverse PTO
Features
Engine
Powerful engine with 15% more torque makes navigation, has lowest rated RPM, giving the engine a longer life.
DCV
With the company fitted DCV kit, joining heavy equipment such as the reversible MB Plough, Laser Leveler and Harvester is extremely easy.

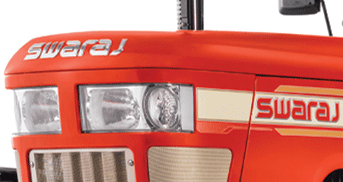

Single Piece Bonnet
It's new single piece bonnet system allows convenient servicing.

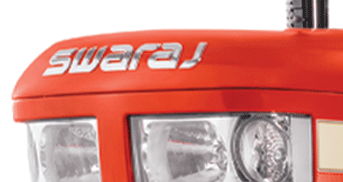

Multi Reflector Lights
The bright multi reflector lights make working even in low-light easy.

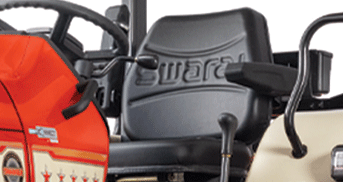

Comfortable Seats
Its big platform, comfortable seat and side-shift gear ensures that the driver has a comfortable experience
PTO
540 PTO, 540 Economy PTO, multi-speed & reverse PTO saves diesel for heavy implements, the Independent PTO clutch helps independent start/stop of PTO
Easy Hitch Lever
With this, the farmer can easily join the implements to the lower links and top links by himself.
New High-Medium-Low Synchromesh Transmission
This tractor has 12F and 3R gears which is highly efficient, and covers more ground in less time.
Hydraulic Pump
The hydraulic pump is made by our engineers who are farmers themselves, making it easy to move and control large equipment thus providing efficiency.

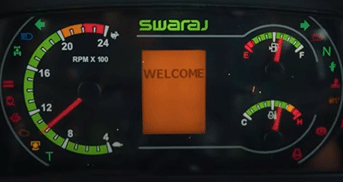

Instrument Cluster
The modern digital instrument cluster and combination switch gives the tractor a contemporary and stylish look.

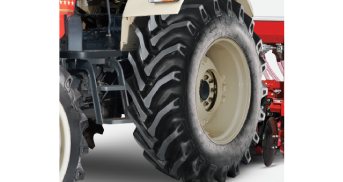

Bigger Tyre
Bigger Tyre - 429.26 mm x 726 mm (16.9 x 30)

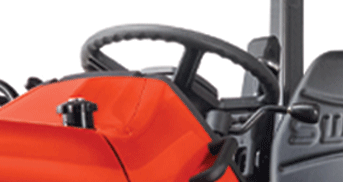

Shuttle Gear
Faster direction switching
Specification
Engine
Power: 49.2 kW - 52.1 kW (66-70 HP)
Type: 4 Stroke, Direct injection, Turbocharged Diesel engine
No. of Cylinders: 3
Bore and Stroke: 110 mm x 122 mm
Displacement: 3478 cm3
Rated Engine Speed: 2000 r/min.
Air Cleaner: Dry type
Cooling System: Water Cooled with no-loss tank
Clutch
12 inch IPTO- Ceramettalic Liner
Gear Speeds
Forward: 0.88 to 32.25 km/h (standard)/Creeper with Shuttle: 0.52 to 32.8 km/h
Reverse: 2.0 & 24.86 km/h (standard)/ Creeper with Shuttle: 0.50 to 31.8 km/h
No. of Gears: 12 Forward, 3 Reverse speeds/ 12 Forward, 12 Reverse speeds
Max Speed : 37.5 km/h with haulage mode
PTO
PTO speed: 540, 540E, Multispeed 8 Forward & 2 Reverse PTO
Brakes
Brake type: Oil-Immersed multi disc brakes
Steering
Steering type: Power steering
Hydraulics
Hydraulics: Live Hydraulics
Lifting Capacity: 2200 kg at lower link ends
Linkage Category: 2 with fixed type lower links
Easy Hitch : Standard
Tyre Type
Option 1: 2WD
Bigger Front Tyre - 190.50 mm ×406.40 mm (7.50 x 16)
Rear Tyre - 429.26 mm x 726 mm (16.9 x 30)
Option 2: 4WD
BiggerFront Tyre - 284.48 mm x 609.06 (11.2 x 24)
Rear Tyre - 429.26 mm x 726 mm (16.9 x 30)
Electricals
Electricals: 12 Volt, 100 Battery starter motor & alternator
Instruments: Digital Instrument cluster with error code display
Option 1: 2WD
O.A. Length: 3740 mm
O.A. Width: 1925 mm
O.A. Height: 2280 mm/2610 (with frame)
Wheel Base: 2210 mm
Min. ground Clearance: 407 mm
Weight of Tractor: 2700 kg
Wheel track Front: 1415 mm
Wheel track Back: 1485 mm
Option 2: 4WD
O.A. Length: 3980 mm (with lower link horizontal position)
O.A. Width: 1915 mm

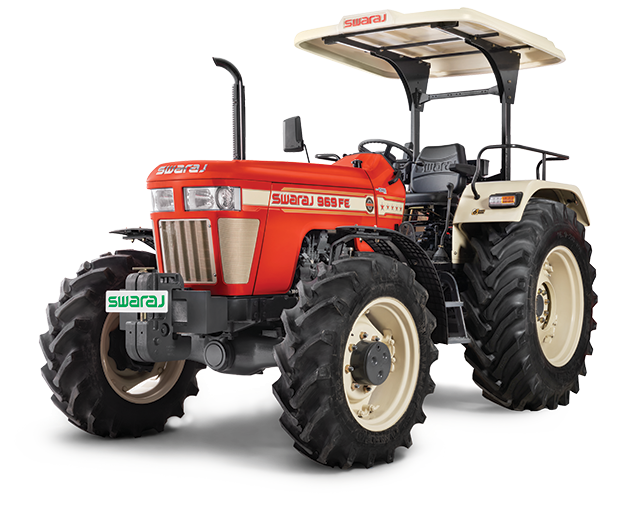

O.A. Height: 2180 mm/2610 (with frame and canopy)
Wheel Base: 2240 mm
Min. ground Clearance: 340 mm
Weight of Tractor: 3080 kg without Frame canopy/3163 kg with Frame canopy
Wheel track Front: 1570 mm
Wheel track Back: 1480 mm
