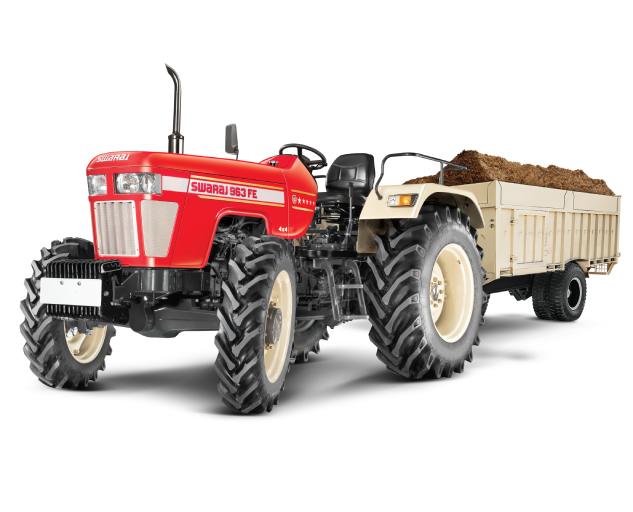

Swaraj 963 FE
swaraj 963 FE
The new Swaraj 963 FE is 44.74-48.47 kW (61-65 HP) category tractor. It is full of brilliant features to fulfill the needs of every farmer. 963 FE, a tractor that can overcome any obstacle, is built on the pillars of power, trust and reliability. The engineers at Swaraj have a keen understanding of farmers’ needs because most of them are farmers themselves. It is this very expertise of theirs that makes the Swaraj 963 FE stand apart from the rest.
Swaraj 963 FE Specifications at a Glance
- No. Of Cylinder : 3
- Power Category : 44.74 kW - 48.47 kW (61-65 HP)
- Engine : 3820 cm3
- Brakes : Oil Immersed type disc brakes
- PTO r/min : 540, 540E, 8 Multi-speed Forward & 2 Reverse PTO
Features

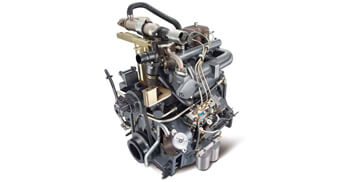

Engine
Powerful engine with 15% more torque makes navigation, has lowest rated RPM, giving the engine a longer life.

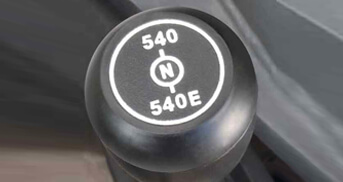

PTO
540 PTO, 540 Economy PTO, multi-speed & reverse PTO saves diesel for heavy implements, the Independent PTO clutch helps independent start/stop of PTO

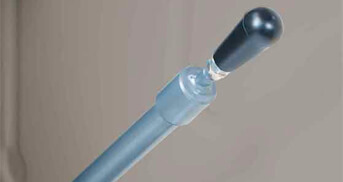

Easy Hitch Lever
With this, the farmer can easily join the implements to the lower links and top links by himself.

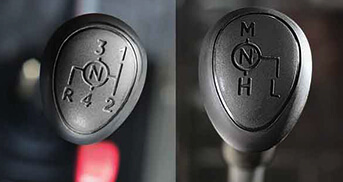

New High-Medium-Low Synchromesh Transmission
This tractor has 12F and 3R gears which is highly efficient, and covers more ground in less time.

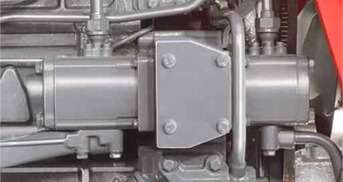

Hydraulic Pump
The hydraulic pump is made by our engineers who are farmers themselves, making it easy to move and control large equipment thus providing efficiency.

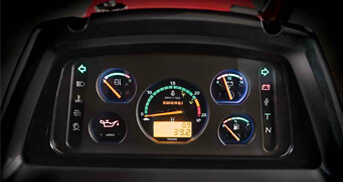

Instrument Cluster
The modern digital instrument cluster and combination switch gives the tractor a contemporary and stylish look.

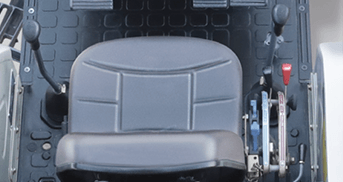

Comfortable Seats
Its big platform, comfortable seat and side-shift gear ensures that the driver has a comfortable experience

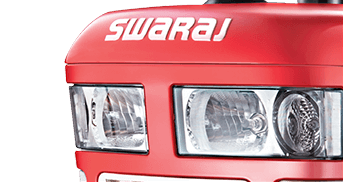

Multi Reflector Lights
The bright multi reflector lights make working even in low-light easy.

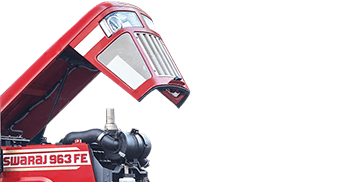

Single Piece Bonnet
It's new single piece bonnet system allows convenient servicing.

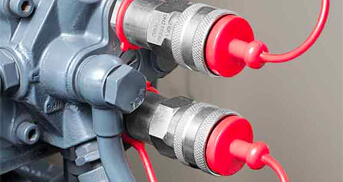

DCV
With the company fitted DCV kit, joining heavy equipment such as the reversible MB Plough, Laser Leveler and Harvester is extremely easy.
Specification
Engine
Power - 44.74 kW - 48.47 kW (61-65 HP)
Type - 4 Stroke, Direct injection, Diesel engine
No. of Cylinders - 3
Bore and Stroke - 110 x 134 mm
Displacement - 3820 cm3
Rated Engine Speed - 2100 r/min.
Air Cleaner - Dry type
Cooling System - Water Cooled with no-loss tank
Clutch
Clutch - 12 inch IPTO - Ceramettalic Liner
Gear Speeds
Forward km/h - 0.88 to 32.25 km/h (standard)/Creeper : 0.52 to 32.8 km/h
Reverse km/h - 2.0 & 24.86 km/h (standard)/Creeper : 0.50 to 31.8 km/h
No. of Gears - 12 Forward, 12 Reverse speeds
PTO
PTO speed - 540, 540E, 8 ulti-speed forward & 2 reverse PTO r/min
Brakes
Brake type - Oil-Immersed type disc brakes
Steering
Steering type - Power steering
Hydraulics
Lifting Capacity - 2200 kg at lower link ends
Tyre Type
2WD
Bigger front tyres – 190.50 mm x 406.40 (7.50 x 16)
Rear Tyre - 426.26 mm x 711.20 mm (16.9 x 28)

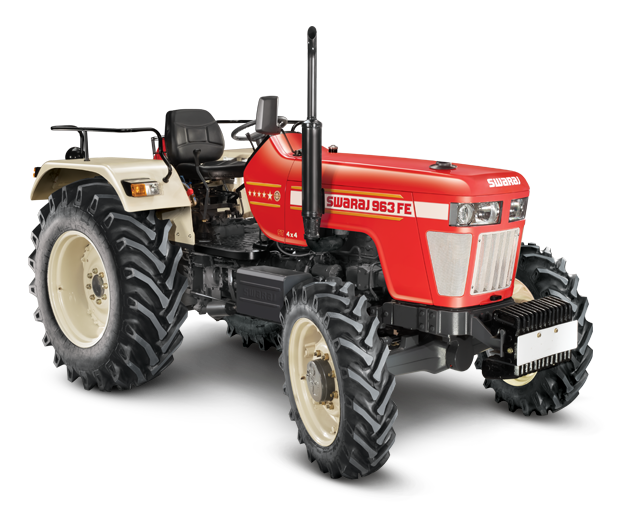

4WD
Bigger front tyres – 241.3 mm x 609.06 (9.5 x 24)
Rear Tyre - 429.26 mm x 711.20 mm (16.9 x 28)
Electricals & Electronics
Electricals - 12V, 100 Battery starter motor & alternator
Instruments - Digital instrument cluster with error code display
Weights & Dimensions
Option 1 : 2WD
Overall Length - 3715 mm
Overall width - 1920 mm
Overall Height - 2270 mm/2610 mm (with frame)
Wheel Base - 2215 mm
Min. Ground Clearance - 407 mm
Weight of tractor - 2700 kg
Wheel track front - 1445 mm
Wheel track rear - 1470 mm
Option 2 : 4WD
Overall Length - 3980 mm
Overall width - 1915 mm
Overall Height - 2180 mm/2610 mm (with frame and canopy)
Wheel Base - 2240 mm
Min. Ground Clearance - 340 mm
Weight of tractor - 3080 kg without frame/canopy/ 3136 kg with frame canopy
Wheel track front - 1570 mm
Wheel track rear - 1480 mm
