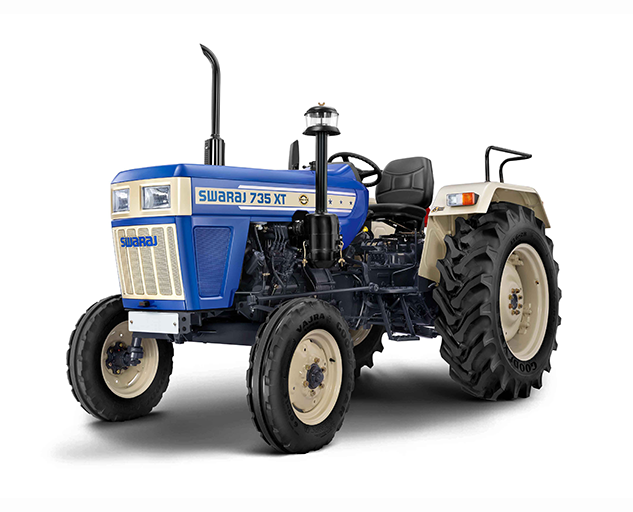

Swaraj 735 XT
swaraj 735 XT
Swaraj 735 XT is a 29.82 kW (40hp) category tractor that delivers extra power, extra comfort and extra performance. It has a high-rated torque engine that results in extra pulling power. Its easy side-gear mechanism provides extra comfort and less fatigue to the operator for long uninterrupted operations. Its high capacity sensilift hydraulics and optimal speed design provide extra work performance on agro & non agro applications. Dual clutch provided in this tractor makes it ideal for rotavator and PTO driven applications.
At a Glance
No. Of Cylinder : 3
Power Category : 29.82 kW (40 HP)
Engine : 2734 cm3
Brakes : OIB
PTO r/min : 540 r/min
Features

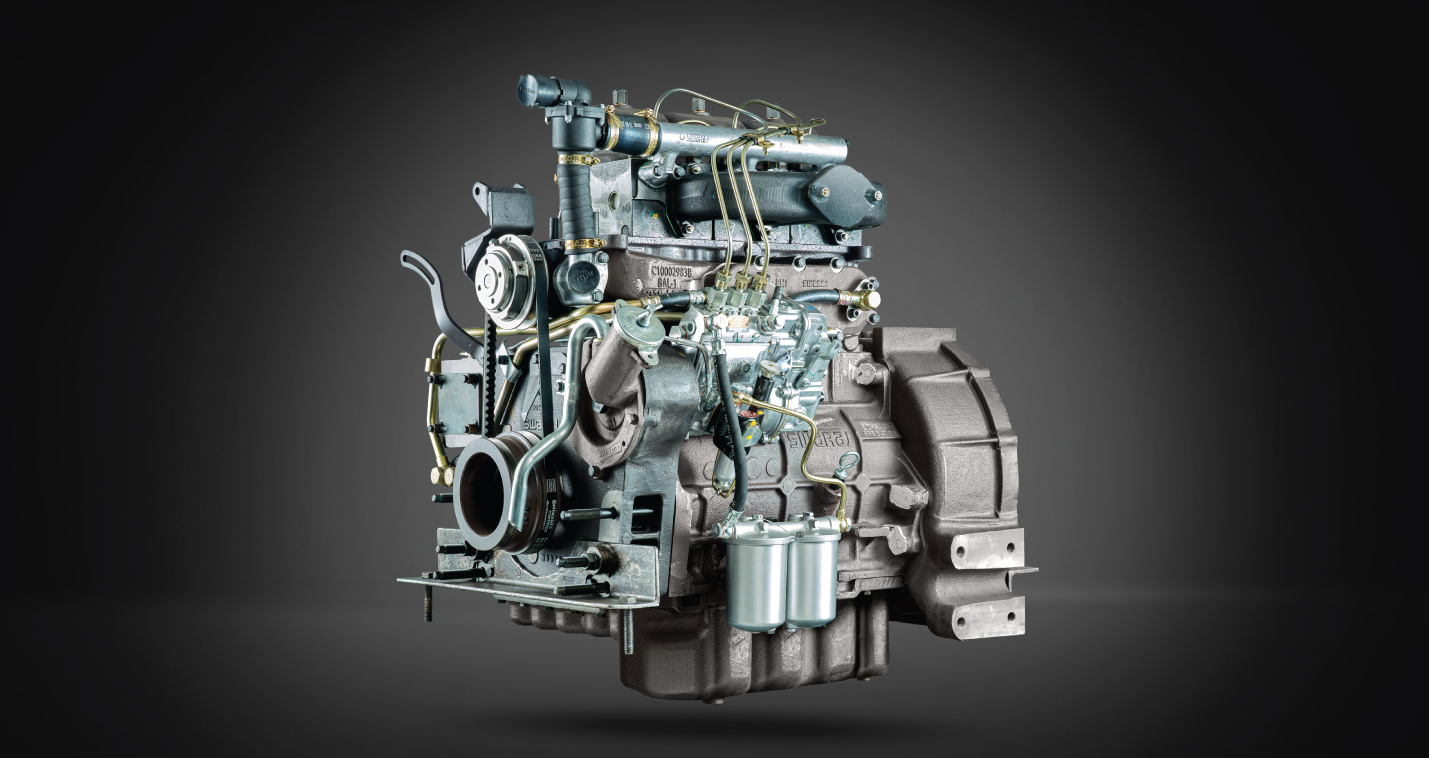

Engine
High-rated torque and max torque as compared to other competitor’s tractors in 40 H.P. category. It results in extra pulling power.
Easy Side Gear
Ensures smooth shifting of gears when tractor is on high speed. It results in very comfortable ride, less fatigue and uninterrupted long drive.
Higher Capacity Sensi Lift Hydraulics
Excellent performance on seed drill & potato planter applications, Higher lifting capacity-1200 kg
Dual Clutch
Uninterrupted PTO operation - More output
Diaphragm Type Single Clutch (Dia-280mm)
More contact area- better life, hence less maintenance
OIB
Better braking efficiency - Less maintenance - Longer life
Low Force Hydraulic Levers
Smooth lever shifting - Less fatigue

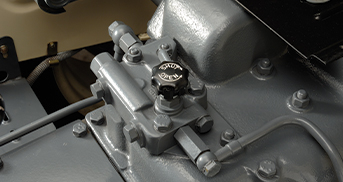

Isolator Valve
For external applications - without operation of lower links
Taper Front Axle
Less turning radius-suitable for small fields also.
Specification
Engine
Model RV-3 XM+ 3A
Power: 29.82 kW (40 HP)
Type 4 Stroke, Direct injection, Diesel engine.
No. of Cylinders 3
Bore and Stroke 100 X 116 mm
Displacement 2734 cm3
Rated Engine Speed 1800 r/min..
Air Cleaner 3- Stage Oil Bath Type
Cooling System Water Cooled with No loss tank.
Clutch
Clutch Standard Single dry disc friction plate - 280 mm dia. (11)
Single dry disc friction plate – 305mm dia 12
Clutch Optional Dual Clutch
Gear Speeds
No. of Gears 8 Forward, 2 Reverse speeds, Side shift levers*
Forward 2.20 to 28.50
Reverse 2.70 & 10.50
PTO
PTO Speed: Standard 540 r/min
PTO Speed: Optional NA
Brakes
Brake Type Standard Oil Immersed Brakes
Brake Type Optional NA
Steering
Standard Mechanical Steering with Heavy Duty single drop arm for better manoeuvrability & comfort to operator.
Optional Power steering
Hydraulics
Live Hydraulics A) Position control: To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output
Lifting Capacity 1200 kg at lower link ends.
Linkage 3 point linkage suitable for Category-I&II type implement pins.
Sensi lift Hydraulics
Tyre Type
Front Tyre Standard 6.00 x 16
Rear Tyre Standard 13.6 x28
Electricals & Electronics
Electricals 12 V, 88 Ah. Battery Starter motor & Alternator
Instruments Engine r/min cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Weights & Dimensions
O.A. Length 3385 mm
O.A. Width 1730 mm
O.A. Height 2285 mm
Wheel Base 1925 mm
Min. Ground Clearance 385 mm
Weight of Tractor 1930 kg
Wheel Track Front 1320 mm
Wheel Track Rear 1350 mm (with 13.6*28 tyre type)
