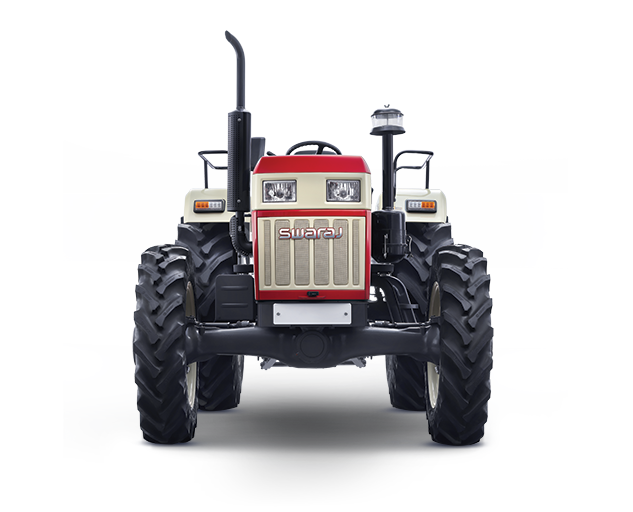

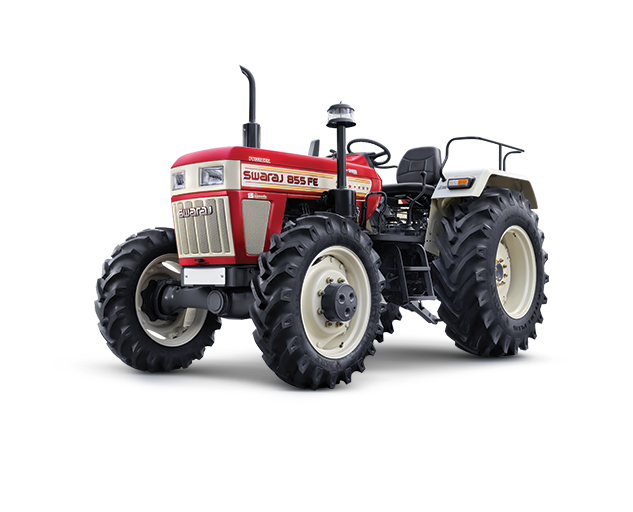

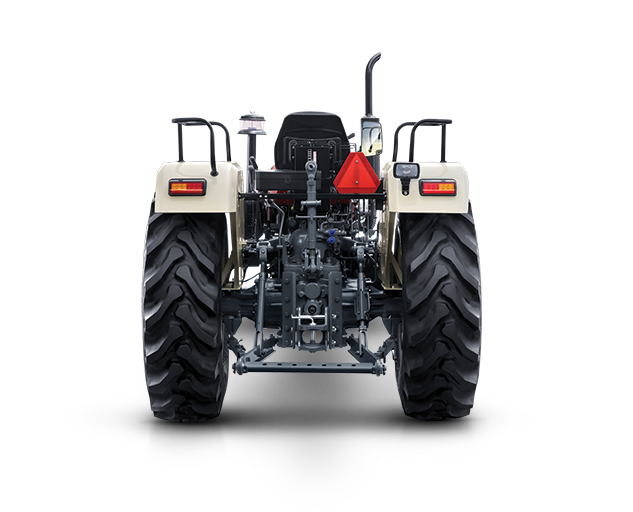

Swaraj 855 FE Pro-Tek
swaraj 855 FE Pro-Tek
With Swaraj PRO-TEK, you propel yourself ahead of the rest and take a step into the future. Its powerful performance, precision engineering, and ease of operation ensure that every task - from agri operation to commercial usage is completed faster, more efficiently, and with lesser effort. With the Swaraj PRO-TEK, you don’t just get the job done - you get it done while saving time and maximising output.
SWARAJ PRO-TEK KEY FEATURES :
- CROP-FIT
- DURA-MAXX Clutch
- COMFI-FLAT Deck
- POWER-SENSE Lift
- DURA-TUFF Axle
- VERSA PTO
- EZE-SHIFT Transmission
- Balanced Power Steering
- Suspended Pedals
- Differential Lock
- 70 Ltr Fibre Fuel Tank
Swaraj 855 FE Pro-Tek Specifications at a Glance
- No. Of Cylinder : 3
- Power Category : 33.56-37.28KW (46-50 HP)
- Engine : 3478 cm3
- Brakes : Oil Immersed Brakes
- PTO r/min : 540+540E+MRPTO/540+540E (O)/540+R (O)
Features

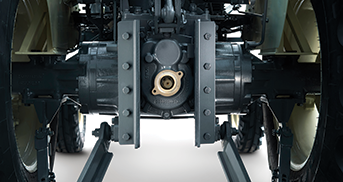

Dura-Tuff Axle
Built for reliability and strength, delivering consistent performance in demanding applications like puddling, reverse scraper, heavy haulage and ploughing

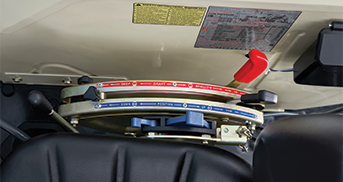

Power-sense lift
Handles the heaviest implements up to 2500 kg with ease and precision to perform effortlessly in tough ploughing and cultivation.

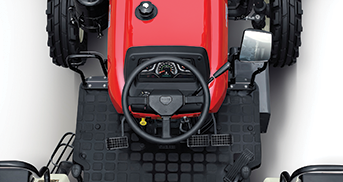

Comfi-flat deck
Full flat platform for more legroom and all-day comfort
Digital cluster
Better Day/Night visibility

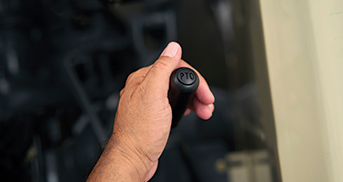

Dura-Maxx Clutch
Longer clutch life in baler, loader and high-stress task

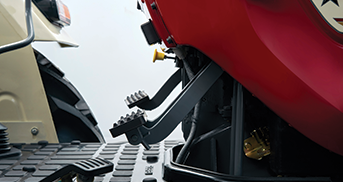

Suspended pedals
Smoother brake and clutch operation

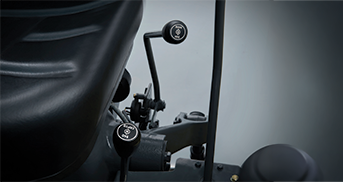

Versa PTO
10 forward and 2 Reverse PTO options with optimised speeds for various PTO implement operations

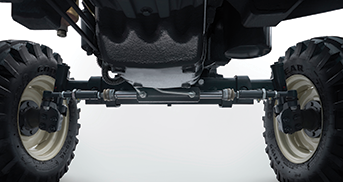

Balanced Power Steering
Effortless handling in haulage and agri use
Specification
Engine
Rated Engine Speed (r/min) : 2000
Displacement (cm3) : 3478
Bore (mm) : 110
Stroke (mm) : 122
Service Interval (Hours) : 500
Transmission
Gear Box Type : EZE-SHIFT- Fully Constant Mesh with 1/R Inline
Number of gears and shift pattern : 12F+3R Side Shift / 12F+12R Side Shift (O)
Clutch Type : DURA-MAXX Clutch - IPTO Cerametallic Safety / SC (O)
Front Axle Type : CROP-FIT -Adjustable / Fixed (O)
Front Axle Drive : 2WD/4WD
Rear Reduction : DURA-TUFF Axle- Epicyclic Reduction
Differential Lock : Yes
PTO and Hydraulics
PTO (r/min) : VERSA PTO - 540+540E+MRPTO/540+540E (O)/540+R (O)
Hydraulics (kg) : POWER-SENSE Lift - 2500 kg with Precision Hydraulics
Toggle : Mechanical Toggle
Brakes
Type : Oil Immersed Brakes
Tyre Size
2WD
Front (mm) : 190.50 mm x 406.40 mm (7.50 x 16)
Rear (mm) : 378.46 mm x 711.20 mm (14.9 x 28) / 429.26 mm x 711.20 mm (16.9 x 28)
4WD
Front (mm) : 241.30 mm x 508.00 mm (9.5 x 20) / 241.30 mm x 609.60 mm (9.5 x 24)
Rear (mm) : 378.46 mm x 711.20 mm (14.9 x 28) / 429.26 mm x 711.20 mm (16.9 x 28)
Electrical
Battery (Ah) : 100
Head Lamp Types : Clear Lens
Fender & Tail Lamps : LED
Dimensions and Capacity
Overall length (mm) : 3580 (2WD) / 3730(4WD)
Overall width (mm) : 1920 (2WD) / 1920(4WD)
Wheel base (mm) : 2160 (2WD) / 2160 (4WD-14.9 x 28) / 2240 (4WD-16.9 x 28)
Diesel Tank Capacity (L) : 70
Vehicle
Platform : COMFI-FLAT Deck - Full Flat platform
Pedals : Suspended Pedals
Steering : Balanced Power Steering / Differential Power Steering
